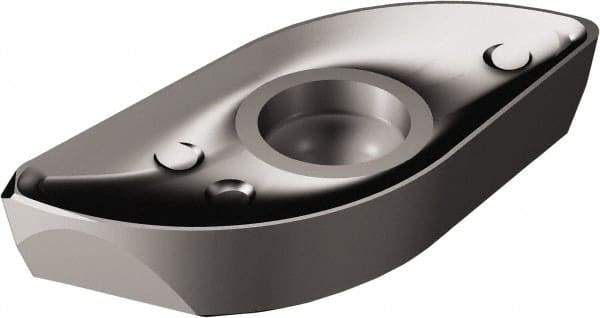

Sandvik Coromant - R2162504 M-M Grade 1010 Carbide Milling Insert - TiAlN2 Finish, 4.76mm Thick
Item #: 49543408
Brand: Sandvik Coromant
Model #: 5743709
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R216 |
| Insert Size | 2504 |
| Material | Carbide |
| Manufacturer's Grade | 1010 |
| Coating | TiAlN2 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Hole Diameter (mm) | 4.70 |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Relief Angle | 9.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | M-M |
| Cutting Edge Style | Rounded |
| ISO Number | R216-25 04 M-M 1010 |
