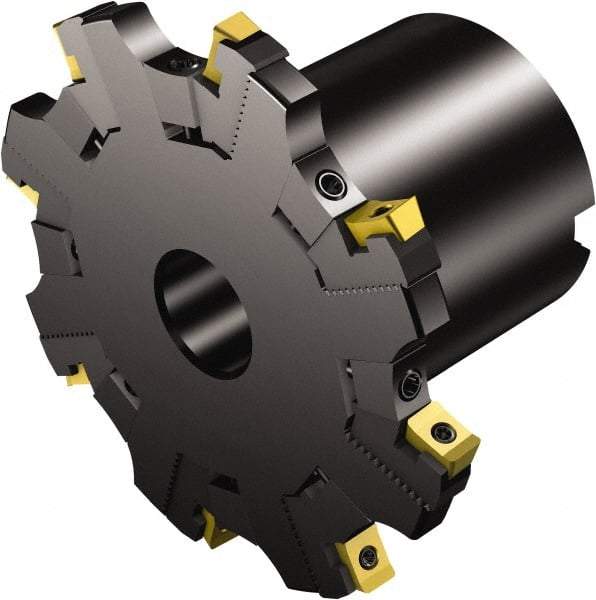

Sandvik Coromant - 27 Connection, 97mm Cutter Diam, 1-1/16" Hole Diam, 6 Tooth Indexable Slotting Cutter - R331.52..Qxx..L Toolholder, N331.1A-11 Insert, Right Hand Cutting Direction
Item #: 49542095
Brand: Sandvik Coromant
Model #: 5744993
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 27 |
| Cutter Diameter (mm) | 97.00 |
| Cutter Diameter (Decimal Inch) | 3.8189 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Modular Connection Size | 27 |
| Number of Teeth | 6 |
| Toolholder Style | R331.52..Qxx..L |
| Series | CoroMill 331 |
| Insert Style | N331.1A-11 |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 14000 |
| Maximum RPM | 14000 |
| Hub Diameter (mm) | 54.00 |
| Hub Diameter (Decimal Inch) | 2.1260 |
| Hub Diameter (mm) | 54.00 |
| Hub Diameter (Decimal Inch) | 2.1260 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Lead Angle | 90 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-11 |
