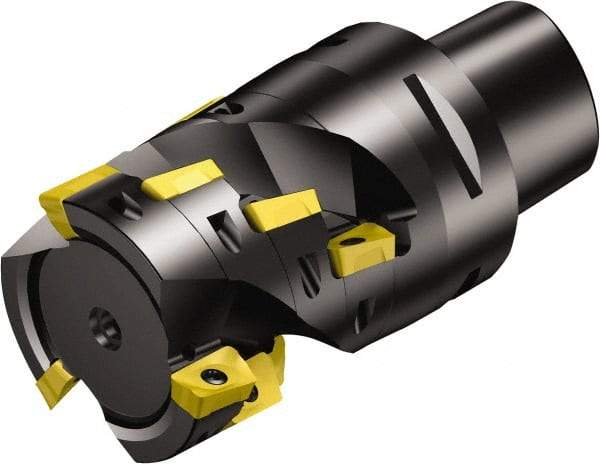

Sandvik Coromant - 6 Inserts, 44mm Cut Diam, 63mm Arbor Diam, 43mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 118.6mm High, R390-18.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49540628
Brand: Sandvik Coromant
Model #: 5745482
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 44.00 |
| Cutting Diameter (Decimal Inch) | 1.7323 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 118.60 |
| Overall Height (Decimal Inch) | 4.6693 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 43.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.6929 |
| Cutting Direction | R390-18.. |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Cx (LE) |
| Maximum RPM | 9200 |
| ISO Number | R390-044C6-43L |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
