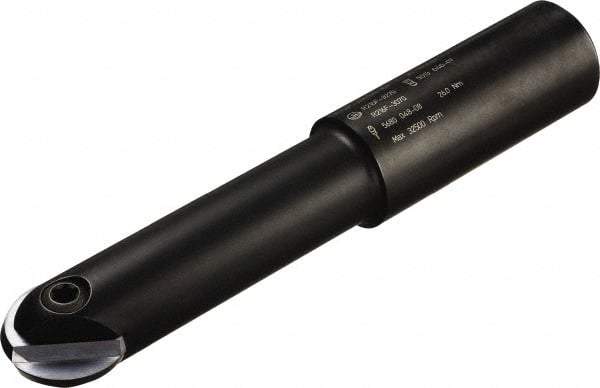

Sandvik Coromant - 32mm Cut Diam, 4.8mm Max Depth of Cut, 32mm Shank Diam, 187mm OAL, Indexable Ball Nose End Mill - 127mm Head Length, 32 Straight Shank, R216F..AxxS Toolholder
Item #: 49540305
Brand: Sandvik Coromant
Model #: 5743812
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Shank Type | Straight Shank |
| Modular Connection Thread Size | 32 |
| Shank Diameter (mm) | 32.00 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Toolholder Style | R216F..AxxS |
| Series | CoroMill 216F |
| Overall Length (mm) | 187.00 |
| Overall Length (Decimal Inch) | 7.3622 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | No |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 127.00 |
| Head Length (Decimal Inch) | 5.0000 |
| Maximum RPM | 32500 |
| Projection (mm) | 127.00 |
| Projection (Decimal Inch) | 5.0000 |
