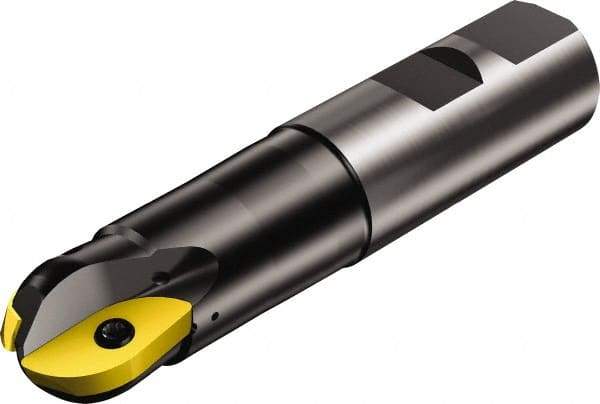

Sandvik Coromant - 50mm Cut Diam, 44.6mm Max Depth of Cut, 50mm Shank Diam, 206mm OAL, Indexable Ball Nose End Mill - 126mm Head Length, 50 Weldon Flat Shank, R216..Bxx Toolholder
Item #: 49540289
Brand: Sandvik Coromant
Model #: 5743808
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Depth of Cut (mm) | 44.60 |
| Maximum Depth of Cut (Decimal Inch) | 1.7559 |
| Shank Type | Weldon Flat |
| Modular Connection Thread Size | 50 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Toolholder Style | R216..Bxx |
| Series | CoroMill 216 |
| Overall Length (mm) | 206.00 |
| Overall Length (Decimal Inch) | 8.1102 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 126.00 |
| Head Length (Decimal Inch) | 4.9606 |
| Maximum RPM | 7000 |
| Projection (mm) | 126.00 |
| Projection (Decimal Inch) | 4.9606 |
