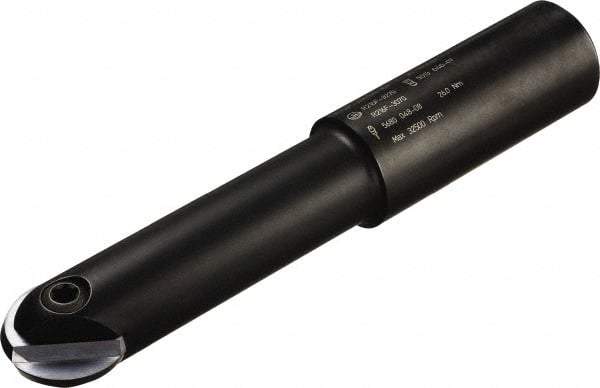

Sandvik Coromant - 8mm Cut Diam, 1.2mm Max Depth of Cut, 12mm Shank Diam, 92mm OAL, Indexable Ball Nose End Mill - 47mm Head Length, 12 Straight Shank, R216F..AxxC Toolholder
Item #: 49539026
Brand: Sandvik Coromant
Model #: 5743723
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.3149 |
| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Shank Type | Straight Shank |
| Modular Connection Thread Size | 12 |
| Shank Diameter (mm) | 12.00 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Toolholder Style | R216F..AxxC |
| Series | CoroMill 216F |
| Overall Length (mm) | 92.00 |
| Overall Length (Decimal Inch) | 3.6221 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | No |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (mm) | 47.00 |
| Head Length (Decimal Inch) | 1.8504 |
| Maximum RPM | 40000 |
| Projection (mm) | 47.00 |
| Projection (Decimal Inch) | 1.8504 |
