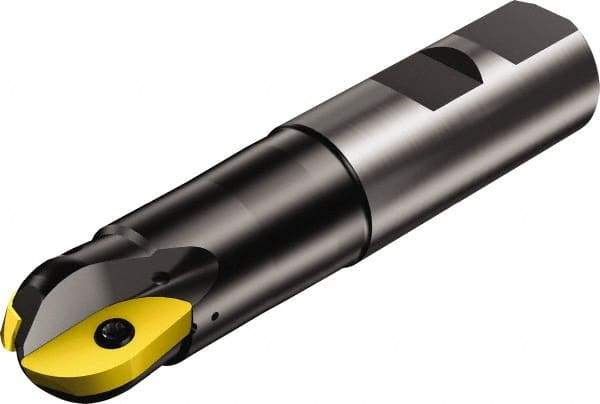

Sandvik Coromant - 25mm Cut Diam, 22.3mm Max Depth of Cut, 1" Shank Diam, 146.84mm OAL, Indexable Ball Nose End Mill - 88.9mm Head Length, 1 Weldon Flat Shank, R216..Mxx Toolholder
Item #: 49538978
Brand: Sandvik Coromant
Model #: 5743680
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9842 |
| Maximum Depth of Cut (mm) | 22.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.8780 |
| Shank Type | Weldon Flat |
| Modular Connection Thread Size | 1 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 1 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Toolholder Style | R216..Mxx |
| Series | CoroMill 216 |
| Overall Length (mm) | 146.84 |
| Overall Length (Decimal Inch) | 5.7811 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 88.90 |
| Head Length (Decimal Inch) | 3.5000 |
| Maximum RPM | 24000 |
| Projection (mm) | 88.90 |
| Projection (Decimal Inch) | 3.5000 |
