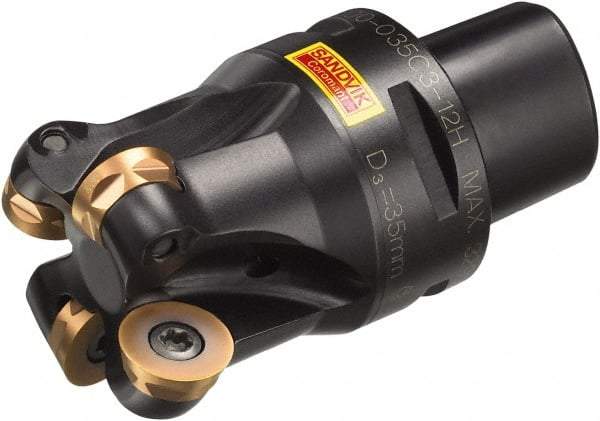

Sandvik Coromant - 66mm Cutting Diam, 4mm Max Depth of Cut, C6 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-0828.. Insert Style, R300..Cx Toolholder, Through Coolant
Item #: 49529050
Brand: Sandvik Coromant
Model #: 5744288
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 66.00 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 10 |
| Insert Style | R300-0828.. |
| Toolholder Style | R300..Cx |
| Overall Length (mm) | 88.00 |
| Overall Length (Decimal Inch) | 3.4646 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 10 |
| Minimum Cutting Diameter (mm) | 58.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Maximum RPM | 23100 |
| Maximum Cutting Diameter (Decimal Inch) | 2.59842 |
| Minimum Cutting Diameter (Decimal Inch) | 2.2835 |
| Projection (mm) | 50.00 |
| Projection (Decimal Inch) | 1.9685 |
| Modular Connection Size | C6 |
