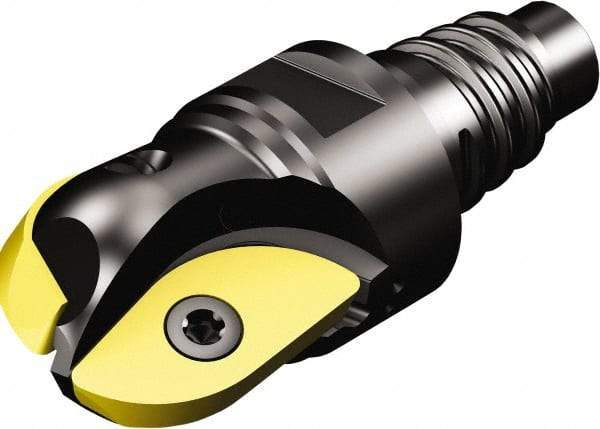

Sandvik Coromant - 20mm Cut Diam, 17.9mm Max Depth of Cut, 19.3mm Shank Diam, 49.5mm OAL, Indexable Ball Nose End Mill - 30mm Head Length, E20 Weldon Flat Shank, R216..EH Toolholder
Item #: 49528870
Brand: Sandvik Coromant
Model #: 6550038
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 17.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.7047 |
| Shank Type | Weldon Flat |
| Modular Connection Thread Size | E20 |
| Shank Diameter (mm) | 19.30 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Toolholder Style | R216..EH |
| Series | CoroMill 216 |
| Overall Length (mm) | 49.50 |
| Overall Length (Decimal Inch) | 1.9488 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Maximum RPM | 12700 |
| Projection (mm) | 30.00 |
| Projection (Decimal Inch) | 1.1811 |
