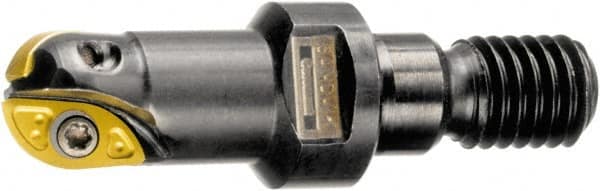

Sandvik Coromant - 10mm Cut Diam, 8.6mm Max Depth of Cut, 12.8mm Shank Diam, 42.5mm OAL, Indexable Ball Nose End Mill - 25mm Head Length, M8 Weldon Flat Shank, R216..Txx Toolholder
Item #: 49528615
Brand: Sandvik Coromant
Model #: 5743659
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 8.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.3386 |
| Shank Type | Weldon Flat |
| Modular Connection Thread Size | M8 |
| Shank Diameter (mm) | 12.80 |
| Shank Diameter (Decimal Inch) | 0.5039 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Toolholder Style | R216..Txx |
| Series | CoroMill 216 |
| Overall Length (mm) | 42.50 |
| Overall Length (Decimal Inch) | 1.6732 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | No |
| Number of Flutes | 2 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Maximum RPM | 12700 |
| Projection (mm) | 25.00 |
| Projection (Decimal Inch) | 0.9843 |
