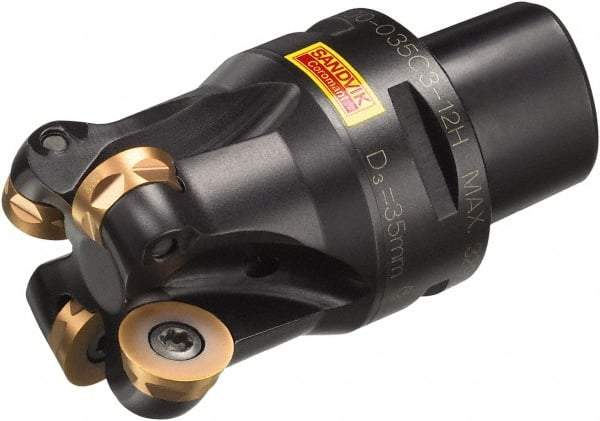

Sandvik Coromant - 66mm Cutting Diam, 8mm Max Depth of Cut, C6 Modular Connection, Indexable Copy End Mill - Screw Holding Method, R300-1648.. Insert Style, R300..Cx Toolholder, Through Coolant
Item #: 49525801
Brand: Sandvik Coromant
Model #: 5744328
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 66.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 5 |
| Insert Style | R300-1648.. |
| Toolholder Style | R300..Cx |
| Overall Length (mm) | 98.00 |
| Overall Length (Decimal Inch) | 3.8583 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 5 |
| Minimum Cutting Diameter (mm) | 50.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Maximum RPM | 17600 |
| Maximum Cutting Diameter (Decimal Inch) | 2.59842 |
| Minimum Cutting Diameter (Decimal Inch) | 1.9685 |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Modular Connection Size | C6 |
