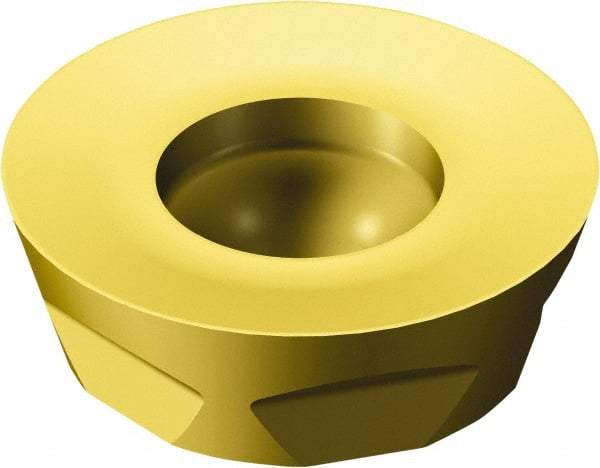

Sandvik Coromant - R3002060 MM Grade 2040 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 6.48mm Thick, 20mm Inscribed Circle
Item #: 49519309
Brand: Sandvik Coromant
Model #: 5744526
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R300 |
| Insert Size | 2060 |
| Material | Carbide |
| Manufacturer's Grade | 2040 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 20.00 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness (mm) | 6.48 |
| Thickness (Decimal Inch) | 0.2551 |
| Hole Diameter (mm) | 7.00 |
| Hole Diameter (Decimal Inch) | 0.2756 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 2.93 |
| Maximum Depth of Cut (Decimal Inch) | 0.1154 |
| Cutting Edge Style | Rounded |
| ISO Number | R300-2060M-MM 2040 |
