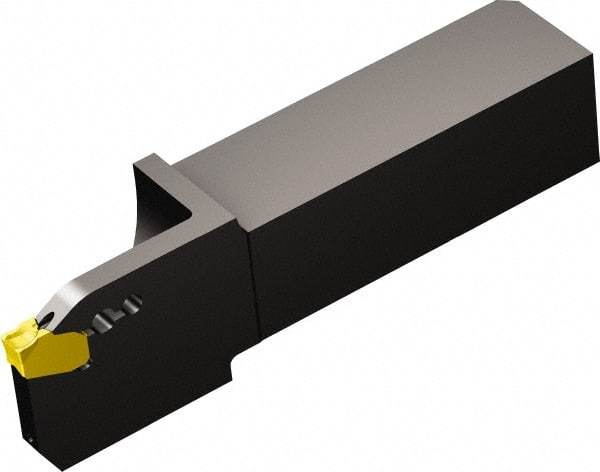

Sandvik Coromant - QS-QD-R/LF..C..D, External, Right Hand, 20mm Max Depth of Cut, Indexable Grooving Tool Holder - QD-NE-0200-0002-CM Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 90.6mm OAL, Through Coolant
Item #: 49514870
Brand: Sandvik Coromant
Model #: 6427671
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Overall Length (mm) | 90.60 |
| Overall Length (Decimal Inch) | 3.5669 |
| Toolholder Style | QS-QD-R/LF..C..D |
| Insert Compatibility | QD-NE-0200-0002-CM |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | CoroCut QD |
| Through Coolant | Through Coolant |
| Insert Seat Size | E |
| Maximum Hole Depth (Decimal Inch) | 1.6378 |
| Maximum Bore Depth (Decimal Inch) | 1.6378 |
| igrvh Maximum Bore Depth (mm) | 41.60 |
| Maximum Workpiece Diameter (mm) | 40.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5748 |
| Back of Bar to Cutting Edge (mm) | 90.60 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.5669 |
| Center to Cutting Edge (mm) | 20.50 |
| Center to Cutting Edge (Decimal Inch) | 0.8071 |
| Head Length (mm) | 41.60 |
| Head Length (Decimal Inch) | 1.6378 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NE-0200-0002-CM |
