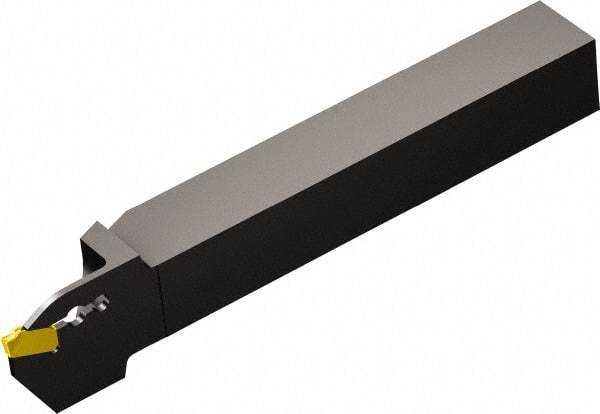

Sandvik Coromant - QD-R/LF..S, External, Left Hand, 33mm Max Depth of Cut, Indexable Grooving Tool Holder - QD-NH-0400-0002-CM Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 49514631
Brand: Sandvik Coromant
Model #: 6427588
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2992 |
| Maximum Depth of Cut (mm) | 33.00 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | QD-R/LF..S |
| Insert Compatibility | QD-NH-0400-0002-CM |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | CoroCut QD |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | H |
| Maximum Hole Depth (Decimal Inch) | 1.6535 |
| Maximum Bore Depth (Decimal Inch) | 1.6535 |
| igrvh Maximum Bore Depth (mm) | 42.00 |
| Maximum Workpiece Diameter (mm) | 66.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5984 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (mm) | 20.00 |
| Center to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 42.00 |
| Head Length (Decimal Inch) | 1.6535 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NH-0400-0002-CM |
