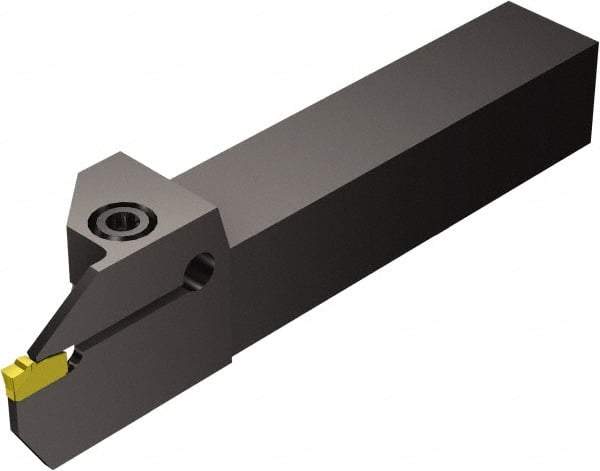

Sandvik Coromant - R/LF151.23, Internal, Right Hand, 20mm Max Depth of Cut, Indexable Grooving Tool Holder - N151.2-250- 5E Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 100mm OAL
Item #: 49514375
Brand: Sandvik Coromant
Model #: 5740921
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Toolholder Style | R/LF151.23 |
| Insert Compatibility | N151.2-250- 5E |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | T-Max Q-Cut |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | 25 |
| Maximum Hole Depth (Decimal Inch) | 1.5748 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| igrvh Maximum Bore Depth (mm) | 40.00 |
| Back of Bar to Cutting Edge (mm) | 100.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.9370 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-250- 5E |
