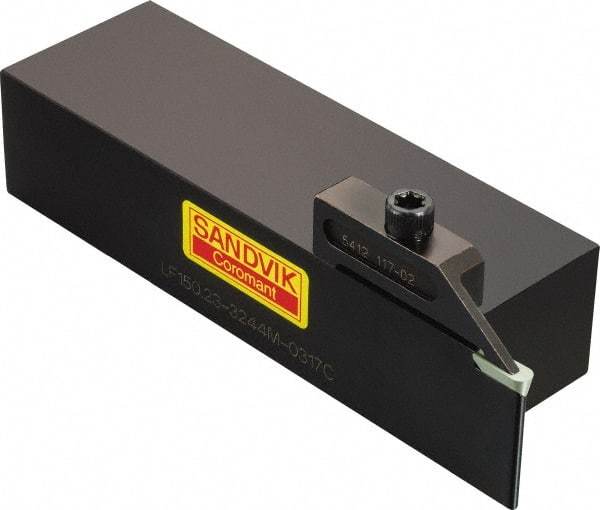

Sandvik Coromant - R/LF150.23, External, Left Hand, 19mm Max Depth of Cut, Indexable Grooving Tool Holder - CSG-4187, 150.23-0476 Insert Compatibility, 32mm Shank Height, 44mm Shank Width, 150mm OAL
Item #: 49514151
Brand: Sandvik Coromant
Model #: 5733629
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Maximum Depth of Cut (mm) | 19.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | R/LF150.23 |
| Insert Compatibility | CSG-4187; 150.23-0476 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 44.00 |
| Shank Width/Diameter (Decimal Inch) | 1.7323 |
| Series | T-Max |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | 2 |
| Maximum Hole Depth (Decimal Inch) | 2.3228 |
| Maximum Bore Depth (Decimal Inch) | 2.3228 |
| igrvh Maximum Bore Depth (mm) | 59.00 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (mm) | 44.40 |
| Center to Cutting Edge (Decimal Inch) | 1.7480 |
| Head Length (mm) | 59.00 |
| Head Length (Decimal Inch) | 2.3228 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 150.23-0476; CSG-4187 |
