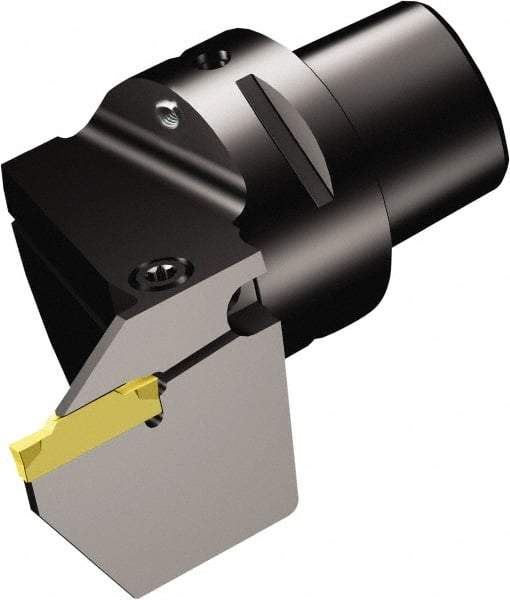

Sandvik Coromant - N123D2-0150-0002-CM Insert, 50mm Head Length, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size C3, Through Coolant, Series CoroCut 1-2 Cutting Unit for Parting & Grooving
Item #: 49514102
Brand: Sandvik Coromant
Model #: 5928094
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | CoroCut 1-2 Cutting Unit for Parting and Grooving |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Insert Style | N123D2-0150-0002-CM |
| Head Length/Projection (mm) | 50.00 |
| Head Length/Projection (Decimal Inch) | 1.9685 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Complete Insert Compatibility | N123D2-0150-0002-CM |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
