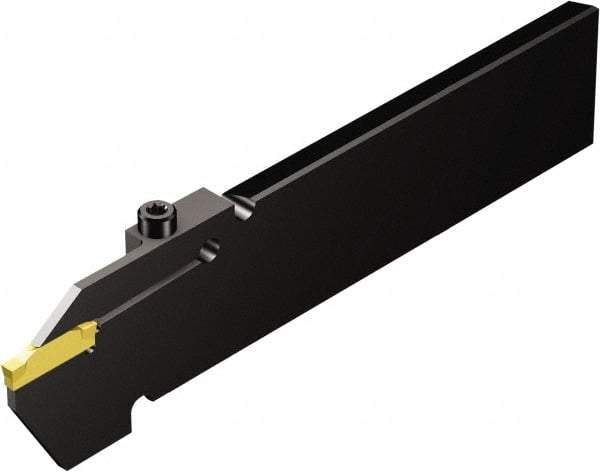

Sandvik Coromant - 1.0197" Blade Height, 0.2756" Blade Width, 4.3307" OAL, Right Hand Cut, Single End Indexable Cut-Off Blade - 25mm Max Depth of Cut, R/LF123..B1 (C) Blade, CoroCut 1-2 Series
Item #: 49513377
Brand: Sandvik Coromant
Model #: 6144186
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 25.90 |
| Blade Height (Decimal Inch) | 1.0197 |
| Blade Width (mm) | 7.00 |
| Blade Width (Decimal Inch) | 0.2756 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | R/LF123..B1 (C) |
| Insert Style | N123F2-0250-0002-CM |
| Series | CoroCut 1-2 |
| Insert Seat Size | F |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Complete Insert Compatibility | N123F2-0250-0002-CM |
| Includes | Clamping screw; Key |
