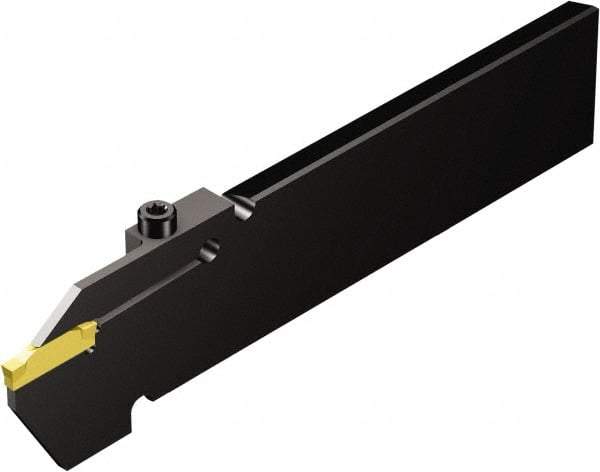

Sandvik Coromant - 1.0197" Blade Height, 0.2697" Blade Width, 4.3307" OAL, Right Hand Cut, Single End Indexable Cut-Off Blade - 30mm Max Depth of Cut, R/LF123..B1 (C) Blade, CoroCut 1-2 Series
Item #: 49513369
Brand: Sandvik Coromant
Model #: 6144188
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 25.90 |
| Blade Height (Decimal Inch) | 1.0197 |
| Blade Width (mm) | 6.85 |
| Blade Width (Decimal Inch) | 0.2697 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | R/LF123..B1 (C) |
| Insert Style | N123G2-0300-0003-TF |
| Series | CoroCut 1-2 |
| Insert Seat Size | G |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Complete Insert Compatibility | N123G2-0300-0003-TF |
| Includes | Clamping screw; Key |
