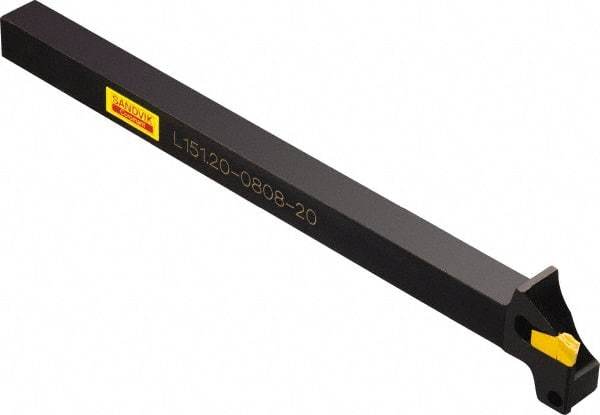

Sandvik Coromant - R/L151.20, Internal, Left Hand, 17mm Max Depth of Cut, Indexable Grooving Tool Holder - N151.2-300- 5E Insert Compatibility, 16mm Shank Height, 12mm Shank Width, 100mm OAL
Item #: 49513161
Brand: Sandvik Coromant
Model #: 5734402
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Maximum Depth of Cut (mm) | 17.00 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Toolholder Style | R/L151.20 |
| Insert Compatibility | N151.2-300- 5E |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Series | T-Max Q-Cut |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | 30 |
| Maximum Hole Depth (Decimal Inch) | 1.0433 |
| Maximum Bore Depth (Decimal Inch) | 1.0433 |
| igrvh Maximum Bore Depth (mm) | 26.50 |
| Maximum Workpiece Diameter (mm) | 35.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3780 |
| Back of Bar to Cutting Edge (mm) | 100.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.9370 |
| Center to Cutting Edge (mm) | 12.30 |
| Center to Cutting Edge (Decimal Inch) | 0.4843 |
| Head Length (mm) | 26.50 |
| Head Length (Decimal Inch) | 1.0433 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-300- 5E |
