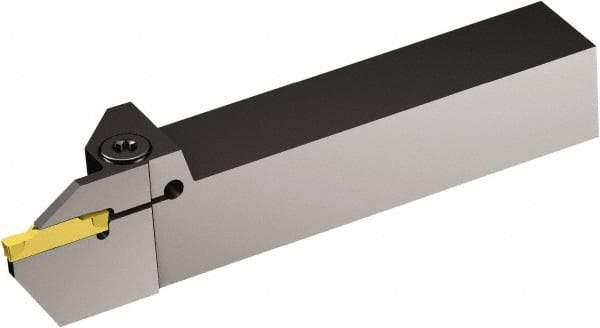

Sandvik Coromant - R/LF123..B, Internal or External, Left Hand, 12mm Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 12mm Shank Height, 12mm Shank Width, 125mm OAL
Item #: 49512726
Brand: Sandvik Coromant
Model #: 5733404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | R/LF123..B |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | G |
| Maximum Hole Depth (Decimal Inch) | 0.8800 |
| Maximum Bore Depth (Decimal Inch) | 0.8800 |
| igrvh Maximum Bore Depth (mm) | 22.35 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Head Length (mm) | 22.35 |
| Head Length (Decimal Inch) | 0.8800 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2-0300-0003-TF |
