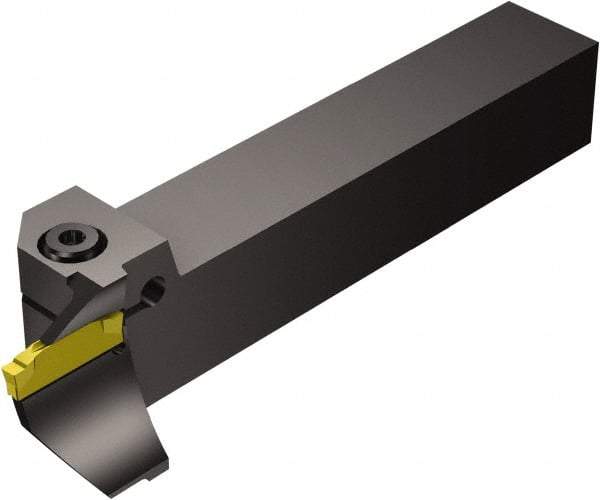

Sandvik Coromant - R/LF123..B..B, External, Left Hand, 12mm Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 49512718
Brand: Sandvik Coromant
Model #: 5908154
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | R/LF123..B..B |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Insert Seat Size | G |
| Maximum Hole Depth (Decimal Inch) | 1.2598 |
| Maximum Bore Depth (Decimal Inch) | 1.2598 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (mm) | 21.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8268 |
| Head Height (Decimal Inch) | 0.7874 |
| Head Height (mm) | 20.00 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2-0300-0003-TF |
