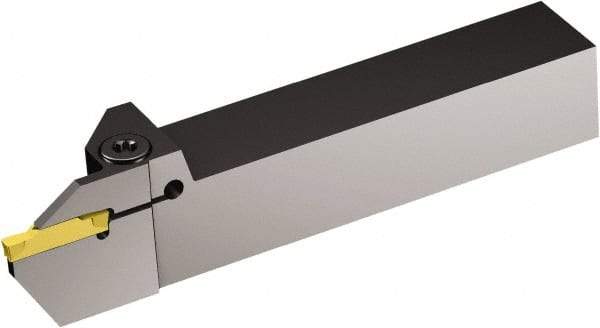

Sandvik Coromant - NF123..B, Internal or External, Neutral, 32mm Max Depth of Cut, Indexable Grooving Tool Holder - N123R1-1500-0010-GR Insert Compatibility, 40mm Shank Height, 40mm Shank Width, 250mm OAL
Item #: 49511611
Brand: Sandvik Coromant
Model #: 5736458
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32.00 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Toolholder Style | NF123..B |
| Insert Compatibility | N123R1-1500-0010-GR |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | R |
| Maximum Hole Depth (Decimal Inch) | 2.8071 |
| Maximum Bore Depth (Decimal Inch) | 2.8071 |
| igrvh Maximum Bore Depth (mm) | 71.30 |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8425 |
| Center to Cutting Edge (mm) | 27.50 |
| Center to Cutting Edge (Decimal Inch) | 1.0827 |
| Head Length (mm) | 71.30 |
| Head Length (Decimal Inch) | 2.8071 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123R1-1500-0010-GR |
