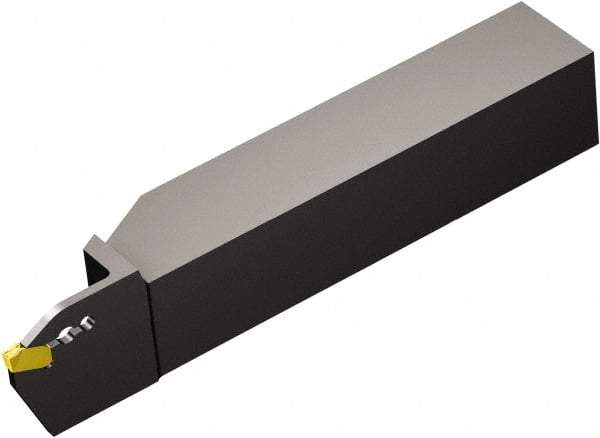

Sandvik Coromant - QD-R/LF..A, External, Right Hand, 20mm Max Depth of Cut, Indexable Grooving Tool Holder - QD-NE-0200-0002-CM Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 49511413
Brand: Sandvik Coromant
Model #: 6427604
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | QD-R/LF..A |
| Insert Compatibility | QD-NE-0200-0002-CM |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | CoroCut QD |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | E |
| Maximum Hole Depth (Decimal Inch) | 1.1811 |
| Maximum Bore Depth (Decimal Inch) | 1.1811 |
| igrvh Maximum Bore Depth (mm) | 30.00 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (mm) | 25.25 |
| Center to Cutting Edge (Decimal Inch) | 0.9941 |
| Head Height (Decimal Inch) | 0.0000 |
| Head Height (mm) | 0.00 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NE-0200-0002-CM |
