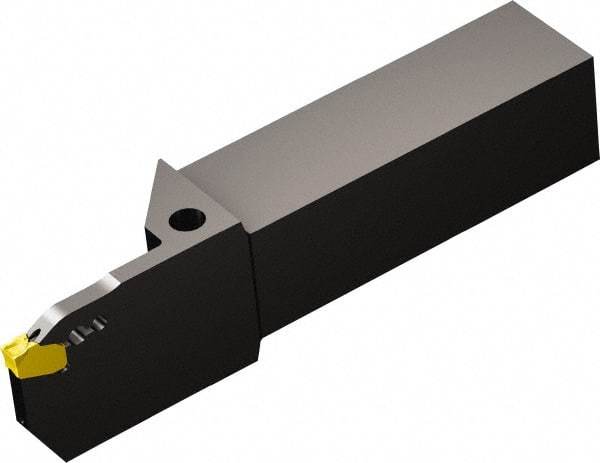

Sandvik Coromant - QD-R/LF..C..A, External, Right Hand, 33mm Max Depth of Cut, Indexable Grooving Tool Holder - QD-NK-0600-0003-CM Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 170mm OAL, Through Coolant
Item #: 49511330
Brand: Sandvik Coromant
Model #: 6427644
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2992 |
| Maximum Depth of Cut (mm) | 33.00 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | QD-R/LF..C..A |
| Insert Compatibility | QD-NK-0600-0003-CM |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Series | CoroCut QD |
| Through Coolant | Through Coolant |
| Insert Seat Size | K |
| Maximum Hole Depth (Decimal Inch) | 2.1654 |
| Maximum Bore Depth (Decimal Inch) | 2.1654 |
| igrvh Maximum Bore Depth (mm) | 55.00 |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (mm) | 33.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2992 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1654 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NK-0600-0003-CM |
