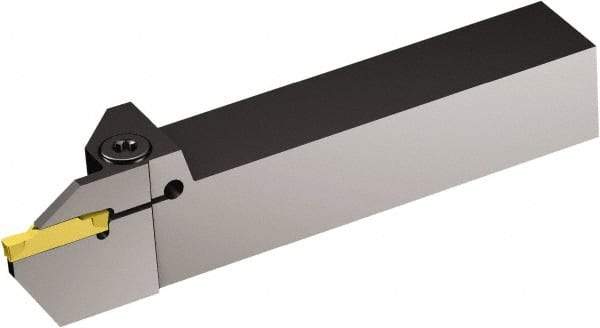

Sandvik Coromant - R/LF123..B, Internal or External, Right Hand, 16mm Max Depth of Cut, Indexable Grooving Tool Holder - N123K2-0600-0004-TF Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 170mm OAL
Item #: 49510365
Brand: Sandvik Coromant
Model #: 5741031
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 16.00 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | R/LF123..B |
| Insert Compatibility | N123K2-0600-0004-TF |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | K |
| Maximum Hole Depth (Decimal Inch) | 1.5354 |
| Maximum Bore Depth (Decimal Inch) | 1.5354 |
| igrvh Maximum Bore Depth (mm) | 39.00 |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (mm) | 33.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2992 |
| Head Length (mm) | 39.00 |
| Head Length (Decimal Inch) | 1.5354 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123K2-0600-0004-TF |
