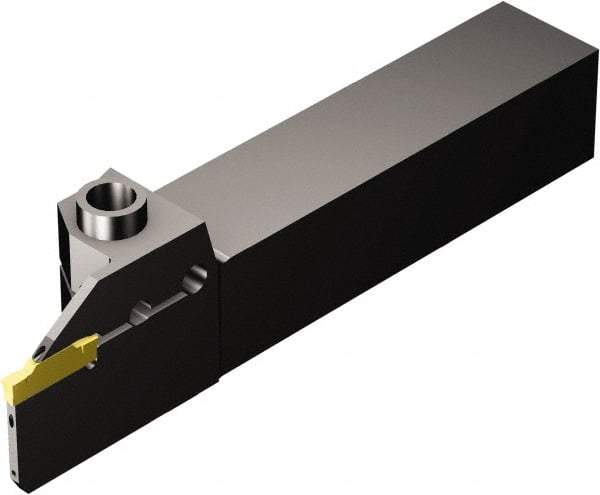

Sandvik Coromant - R/LF123..C..E, Internal or External, Right Hand, 31.75mm Max Depth of Cut, Indexable Grooving Tool Holder - N123L2-0800-0008-TF Insert Compatibility, 31.75mm Shank Height, 31.75mm Shank Width, 176.6mm OAL, Through Coolant
Item #: 49510282
Brand: Sandvik Coromant
Model #: 6537409
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 31.75 |
| Overall Length (mm) | 176.60 |
| Overall Length (Decimal Inch) | 6.9528 |
| Toolholder Style | R/LF123..C..E |
| Insert Compatibility | N123L2-0800-0008-TF |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | CoroCut 1-2 |
| Through Coolant | Through Coolant |
| Insert Seat Size | L |
| Maximum Hole Depth (Decimal Inch) | 2.1732 |
| Maximum Bore Depth (Decimal Inch) | 2.1732 |
| igrvh Maximum Bore Depth (mm) | 55.20 |
| Back of Bar to Cutting Edge (mm) | 176.60 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.9528 |
| Center to Cutting Edge (mm) | 33.47 |
| Center to Cutting Edge (Decimal Inch) | 1.3175 |
| Head Length (mm) | 55.20 |
| Head Length (Decimal Inch) | 2.1732 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123L2-0800-0008-TF |
