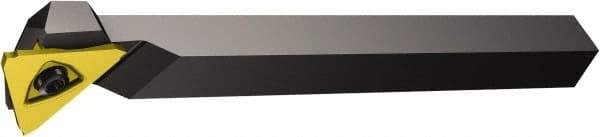

Sandvik Coromant - R/LF123T/U..BM, External, Right Hand, 6.4mm Max Depth of Cut, Indexable Grooving Tool Holder - N123T3-0150- CM Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 170mm OAL
Item #: 49510217
Brand: Sandvik Coromant
Model #: 5740961
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Maximum Depth of Cut (mm) | 6.40 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | R/LF123T/U..BM |
| Insert Compatibility | N123T3-0150- CM |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Series | CoroCut 3 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | T |
| Maximum Hole Depth (Decimal Inch) | 0.9055 |
| Maximum Bore Depth (Decimal Inch) | 0.9055 |
| igrvh Maximum Bore Depth (mm) | 23.00 |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (mm) | 32.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 23.00 |
| Head Length (Decimal Inch) | 0.9055 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123T3-0150- CM |
