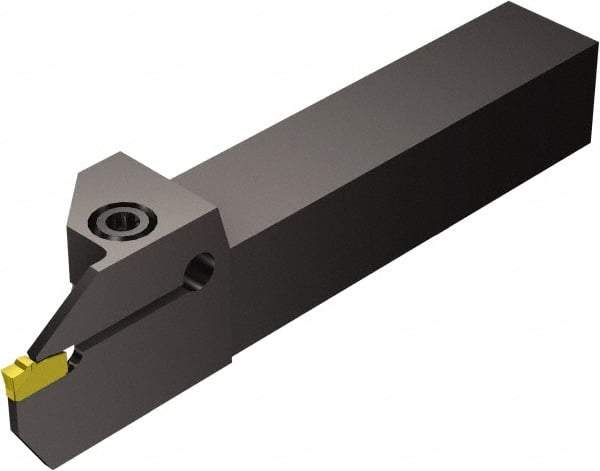

Sandvik Coromant - R/LF151.23, Internal, Right Hand, 25mm Max Depth of Cut, Indexable Grooving Tool Holder - N151.2-400- 5E Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 49510209
Brand: Sandvik Coromant
Model #: 5740950
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Style | R/LF151.23 |
| Insert Compatibility | N151.2-400- 5E |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | T-Max Q-Cut |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | 40 |
| Maximum Hole Depth (Decimal Inch) | 1.8504 |
| Maximum Bore Depth (Decimal Inch) | 1.8504 |
| igrvh Maximum Bore Depth (mm) | 47.00 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (mm) | 21.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8268 |
| Head Length (mm) | 47.00 |
| Head Length (Decimal Inch) | 1.8504 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-400- 5E |
