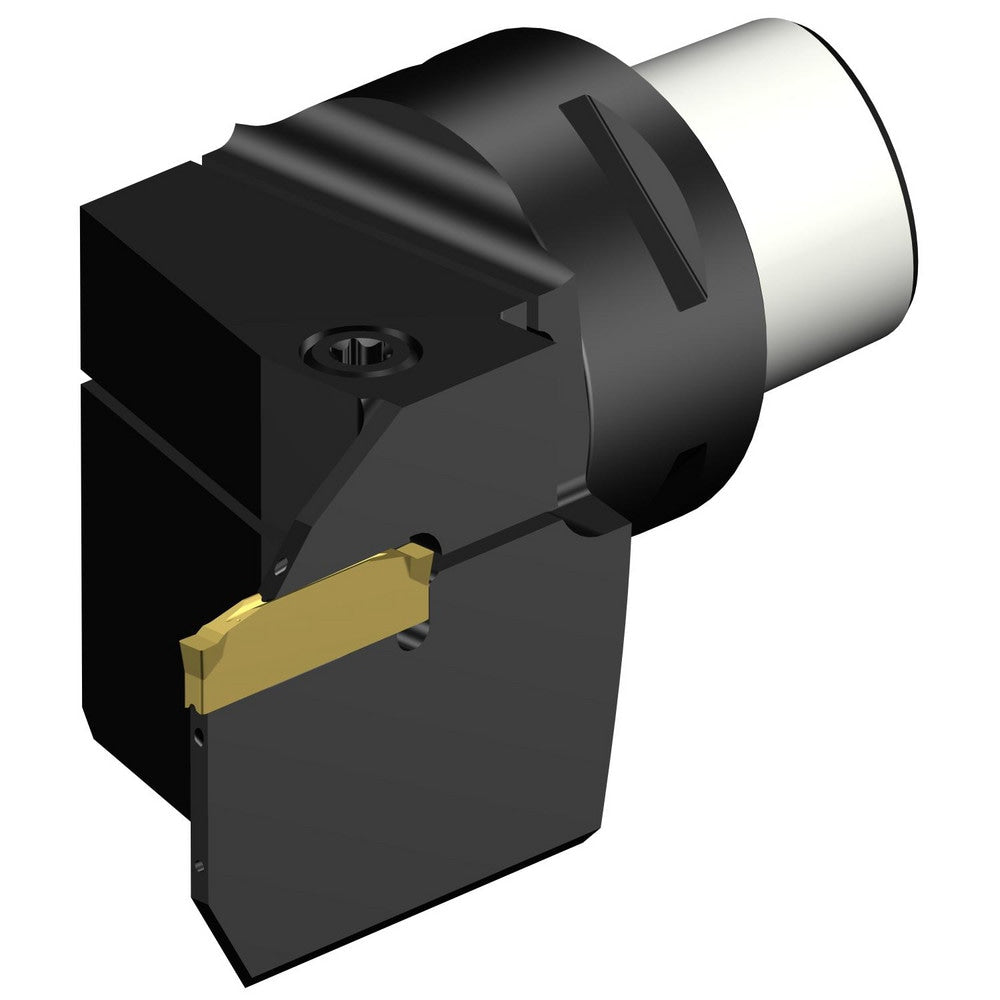

Modular Grooving Cutting Unit Heads; System Size: C3; Maximum Depth of Cut (Decimal Inch): 0.5906; Maximum Depth of Cut (mm): 15.00; Minimum Groove Width (Decimal Inch): 0.8661; Minimum Groove Width (mm): 22.00; Maximum Groove Width (Decimal Inch): 0.8661
Item #: 02221893
Brand: Sandvik Coromant
Model #: 8290038
Product Specifications
| System Size | C3 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Minimum Groove Width (Decimal Inch) | 0.8661 |
| Minimum Groove Width (mm) | 22.00 |
| Maximum Groove Width (Decimal Inch) | 0.8661 |
| Maximum Groove Width (mm) | 22.00 |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | C2I |
| Compatible Insert Size Code | E |
| Series | CoroCut 2 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Blade Style Compatibility | None |
| Complete Insert Compatibility | CoroCut 2 -size E (C2I-E2-0200-) |
| Applications | Parting and Grooving |
| Head Length Projection (Decimal Inch) | 2.1654 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 55.00 |
| UNSPSC Code | 27112809 |
