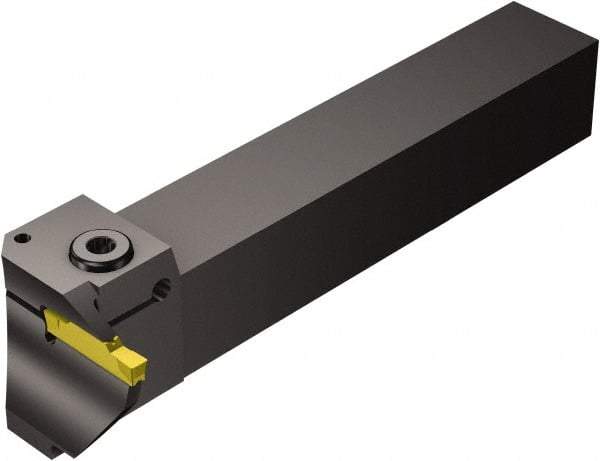

Sandvik Coromant - R/LG123..BM, External, Right Hand, 20mm Max Depth of Cut, Indexable Grooving Tool Holder - N123K2-0600-0004-TF Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 156.5mm OAL
Item #: 49509979
Brand: Sandvik Coromant
Model #: 5741333
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Overall Length (mm) | 156.50 |
| Overall Length (Decimal Inch) | 6.1614 |
| Toolholder Style | R/LG123..BM |
| Insert Compatibility | N123K2-0600-0004-TF |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Insert Seat Size | K |
| Maximum Hole Depth (Decimal Inch) | 1.0886 |
| Maximum Bore Depth (Decimal Inch) | 1.0886 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (mm) | 47.00 |
| Center to Cutting Edge (Decimal Inch) | 1.8504 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 27.65 |
| Head Length (Decimal Inch) | 1.0886 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123K2-0600-0004-TF |
