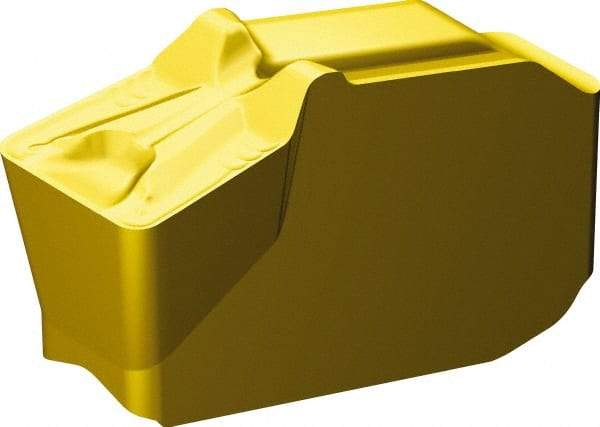

Sandvik Coromant - QD-N0300 TM Grade 1135 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 3.1mm Thick, 1/64" Corner Radius
Item #: 49509680
Brand: Sandvik Coromant
Model #: 6582902
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD-N |
| Insert Size | 0300 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3937 |
| Thickness (Decimal Inch) | 0.1220 |
| Thickness (mm) | 3.10 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 1135 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | TM |
| Insert Length (Decimal Inch) | 0.3937 |
| ISO Number | QD-NG-0300-0004-TM 1135 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut QD |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Cutting Width (mm) | 3.00 |
