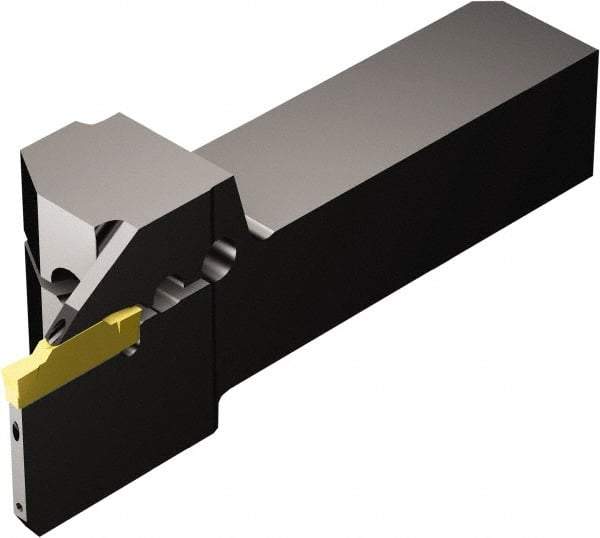

Sandvik Coromant - QS-R/LF123..C..E, Internal or External, Left Hand, 20.32mm Max Depth of Cut, Indexable Grooving Tool Holder - N123G2-0300-0003-TF Insert Compatibility, 25.4mm Shank Height, 25.4mm Shank Width, 121.42mm OAL, Through Coolant
Item #: 49507312
Brand: Sandvik Coromant
Model #: 6537313
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8000 |
| Maximum Depth of Cut (mm) | 20.32 |
| Overall Length (mm) | 121.42 |
| Overall Length (Decimal Inch) | 4.7804 |
| Toolholder Style | QS-R/LF123..C..E |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | Through Coolant |
| Insert Seat Size | G |
| Maximum Hole Depth (Decimal Inch) | 2.4575 |
| Maximum Bore Depth (Decimal Inch) | 2.4575 |
| igrvh Maximum Bore Depth (mm) | 62.42 |
| Back of Bar to Cutting Edge (mm) | 121.42 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.7804 |
| Center to Cutting Edge (mm) | 25.90 |
| Center to Cutting Edge (Decimal Inch) | 1.0197 |
| Head Length (mm) | 62.42 |
| Head Length (Decimal Inch) | 2.4575 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2-0300-0003-TF |
