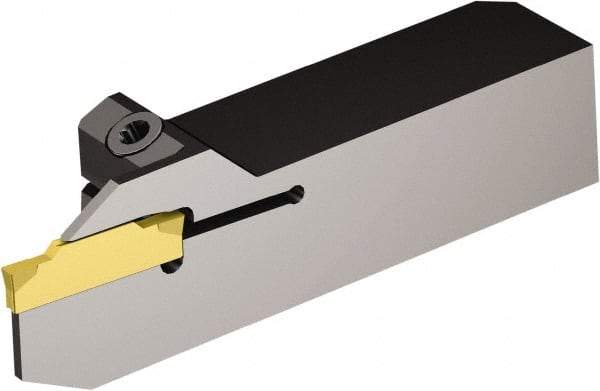

Sandvik Coromant - QS-R/LF123..B, Internal or External, Left Hand, 15mm Max Depth of Cut, Indexable Grooving Tool Holder - N123F2-0250-0002-CM Insert Compatibility, 12mm Shank Height, 12mm Shank Width, 70mm OAL
Item #: 49506876
Brand: Sandvik Coromant
Model #: 5926272
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Toolholder Style | QS-R/LF123..B |
| Insert Compatibility | N123F2-0250-0002-CM |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | F |
| Maximum Hole Depth (Decimal Inch) | 0.7874 |
| Maximum Bore Depth (Decimal Inch) | 0.7874 |
| igrvh Maximum Bore Depth (mm) | 20.00 |
| Maximum Workpiece Diameter (mm) | 30.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1811 |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Center to Cutting Edge (mm) | 12.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123F2-0250-0002-CM |
