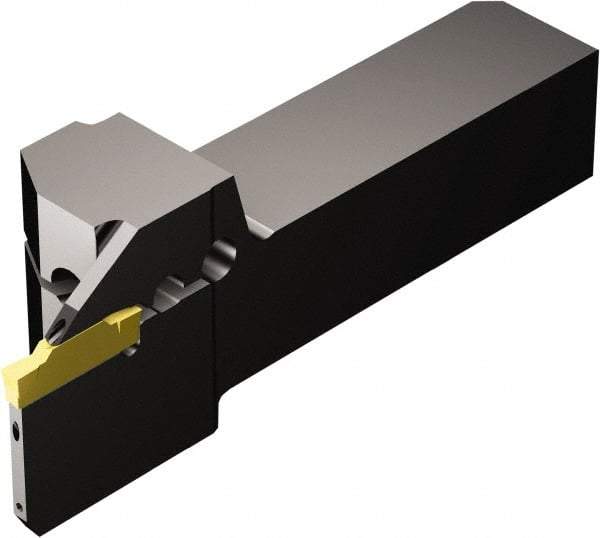

Sandvik Coromant - QS-R/LF123..C..E, Internal or External, Left Hand, 31.75mm Max Depth of Cut, Indexable Grooving Tool Holder - N123M2-1000-0008-GM Insert Compatibility, 25.4mm Shank Height, 25.4mm Shank Width, 133mm OAL, Through Coolant
Item #: 49506348
Brand: Sandvik Coromant
Model #: 6537407
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 31.75 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2361 |
| Toolholder Style | QS-R/LF123..C..E |
| Insert Compatibility | N123M2-1000-0008-GM |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | Through Coolant |
| Insert Seat Size | M |
| Maximum Hole Depth (Decimal Inch) | 2.9132 |
| Maximum Bore Depth (Decimal Inch) | 2.9132 |
| igrvh Maximum Bore Depth (mm) | 74.00 |
| Back of Bar to Cutting Edge (mm) | 133.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.2361 |
| Center to Cutting Edge (mm) | 26.40 |
| Center to Cutting Edge (Decimal Inch) | 1.0394 |
| Head Length (mm) | 74.00 |
| Head Length (Decimal Inch) | 2.9132 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123M2-1000-0008-GM |
