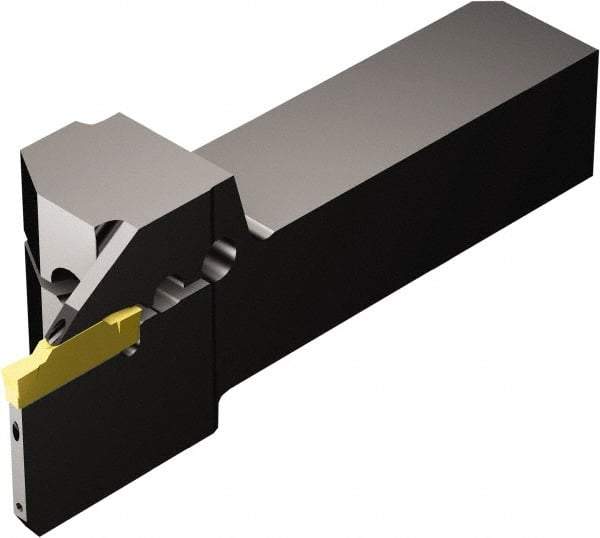

Sandvik Coromant - QS-R/LF123..C..E, Internal or External, Right Hand, 25mm Max Depth of Cut, Indexable Grooving Tool Holder - N123F2-0250-0002-CM Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 125.82mm OAL, Through Coolant
Item #: 49506231
Brand: Sandvik Coromant
Model #: 6537338
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Overall Length (mm) | 125.82 |
| Overall Length (Decimal Inch) | 4.9536 |
| Toolholder Style | QS-R/LF123..C..E |
| Insert Compatibility | N123F2-0250-0002-CM |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | CoroCut 1-2 |
| Through Coolant | Through Coolant |
| Insert Seat Size | F |
| Maximum Hole Depth (Decimal Inch) | 2.6307 |
| Maximum Bore Depth (Decimal Inch) | 2.6307 |
| igrvh Maximum Bore Depth (mm) | 66.82 |
| Back of Bar to Cutting Edge (mm) | 125.82 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9536 |
| Center to Cutting Edge (mm) | 25.50 |
| Center to Cutting Edge (Decimal Inch) | 1.0039 |
| Head Length (mm) | 66.82 |
| Head Length (Decimal Inch) | 2.6307 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123F2-0250-0002-CM |
