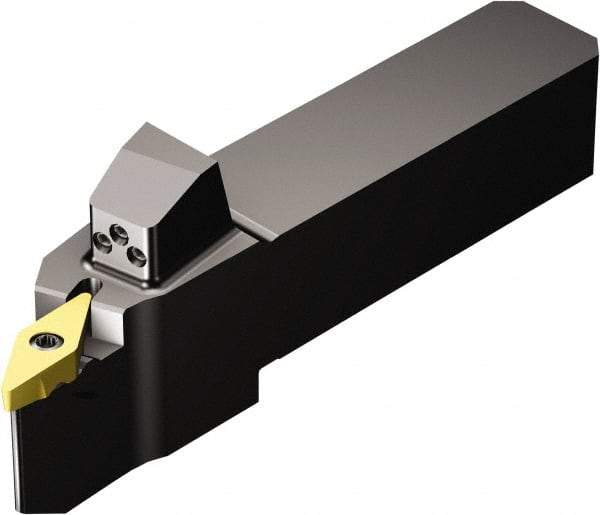

Sandvik Coromant - QS-TR-V..R/L..HP, Right Hand Cut, -3° Lead Angle, 20mm Shank Height x 20mm Shank Width, Neutral Rake Indexable Turning Toolholder - 113mm OAL, TR-VB1308 Insert Compatibility, Series CoroTurn TR
Item #: 49505597
Brand: Sandvik Coromant
Model #: 6766758
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | QS-TR-V..R/L..HP |
| Rake | Neutral |
| Series | CoroTurn TR |
| Lead Angle | -3 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 113.00 |
| Overall Length (Decimal Inch) | 4.4488 |
| Insert Compatibility | TR-VB1308 |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 113.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.4488 |
| Center to Cutting Edge (Decimal Inch) | 0.8071 |
| Head Length (mm) | 64.00 |
| Head Length (Decimal Inch) | 2.5197 |
| Toolholder Material | Steel |
