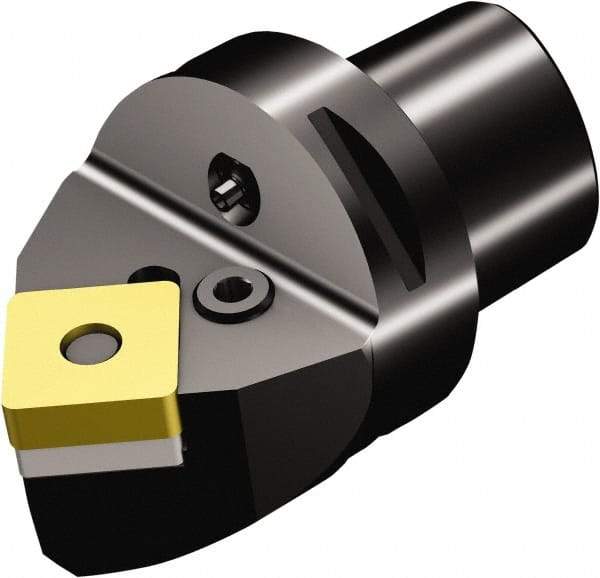

Sandvik Coromant - Neutral Cut, Size C5, SNMG 19 06 12 & SNMG 643 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 0.5mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series T-Max P
Item #: 49494826
Brand: Sandvik Coromant
Model #: 5728752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max P |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 60.00 |
| Insert Style | SNMG 19 06 12; SNMG 643 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 0.50 |
| Center to Cutting Edge (Decimal Inch) | 0.0197 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 60.00 |
| Maximum Hole Depth (Decimal Inch) | 2.3622 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | SNMG 643; SNMG 19 06 12 |
| Head Connection Size | C5 |
