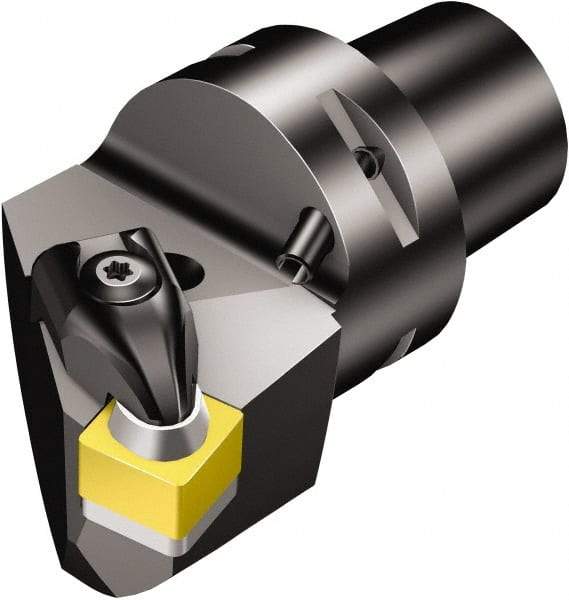

Sandvik Coromant - Right Hand Cut, Size C5, SNG 553 & SNGN 15 07 12 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 24.76mm Ctr to Cutting Edge, 60.24mm Head Length, Through Coolant, Series T-Max
Item #: 49494610
Brand: Sandvik Coromant
Model #: 5728019
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 60.24 |
| Head Length/Projection (Decimal Inch) | 2.3716 |
| Insert Style | SNG 553; SNGN 15 07 12 |
| Center to Cutting Edge (mm) | 24.76 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 50.00 |
| Maximum Hole Depth (Decimal Inch) | 1.9685 |
| Minimum Hole Diameter (mm) | 125.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.9213 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | SNG 553; SNGN 15 07 12 |
| Head Connection Size | C5 |
