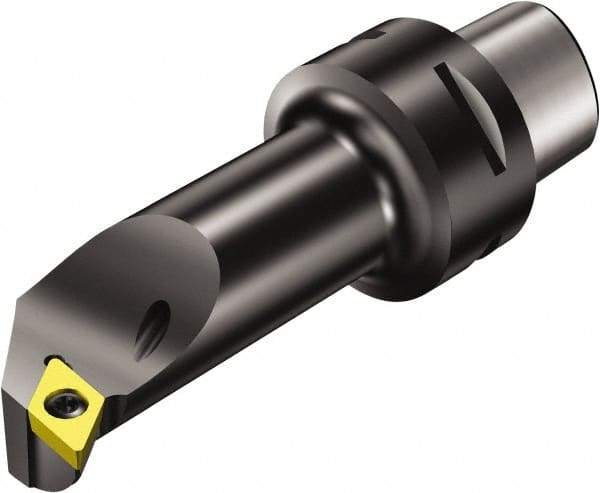

Sandvik Coromant - Left Hand Cut, Size C4, DCMT 11 T3 08 & DCMT 3(2.5)2 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 110mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49494487
Brand: Sandvik Coromant
Model #: 5727789
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 110.00 |
| Insert Style | DCMT 11 T3 08; DCMT 3(2.5)2 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 110.00 |
| Maximum Hole Depth (Decimal Inch) | 4.3307 |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Center to Cutting Height (mm) | 89.00 |
| Center to Cutting Height (Decimal Inch) | 3.5039 |
| Complete Insert Compatibility | DCMT 3(2.5)2; DCMT 11 T3 08 |
| Head Connection Size | C4 |
