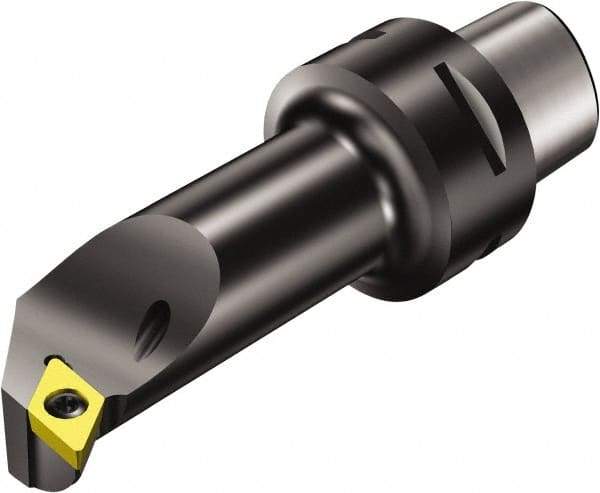

Sandvik Coromant - Left Hand Cut, Size C3, DCMT 07 02 04 & DCMT 2(1.5)1 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 11mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49494172
Brand: Sandvik Coromant
Model #: 5727089
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Insert Style | DCMT 07 02 04; DCMT 2(1.5)1 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Neck Diameter (mm) | 32.00 |
| Neck Diameter (Decimal Inch) | 1.25984 |
| Center to Cutting Height (mm) | 48.00 |
| Center to Cutting Height (Decimal Inch) | 1.8898 |
| Complete Insert Compatibility | DCMT 2(1.5)1; DCMT 07 02 04 |
| Head Connection Size | C3 |
