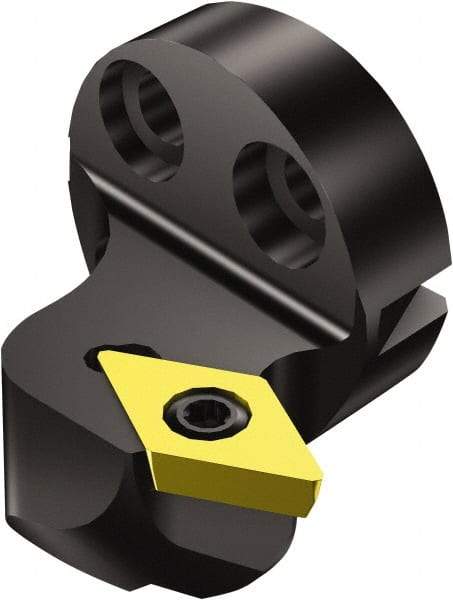

Sandvik Coromant - Right Hand Cut, Size 20, DPMT 07 02 04 & DPMT 2(1.5)1 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 15mm Ctr to Cutting Edge, 18.8mm Head Length, Through Coolant, Series CoroTurn 111
Item #: 49493901
Brand: Sandvik Coromant
Model #: 5764438
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 20 |
| Series Name | CoroTurn 111 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 18.80 |
| Head Length/Projection (Decimal Inch) | 0.7402 |
| Insert Style | DPMT 07 02 04; DPMT 2(1.5)1 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 15.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5906 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 15.00 |
| Maximum Hole Depth (Decimal Inch) | 0.5906 |
| Minimum Hole Diameter (mm) | 27.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.0630 |
| Neck Diameter (mm) | 20.00 |
| Neck Diameter (Decimal Inch) | 0.787402 |
| Complete Insert Compatibility | DPMT 2(1.5)1; DPMT 07 02 04 |
| Head Connection Size | 20 |
