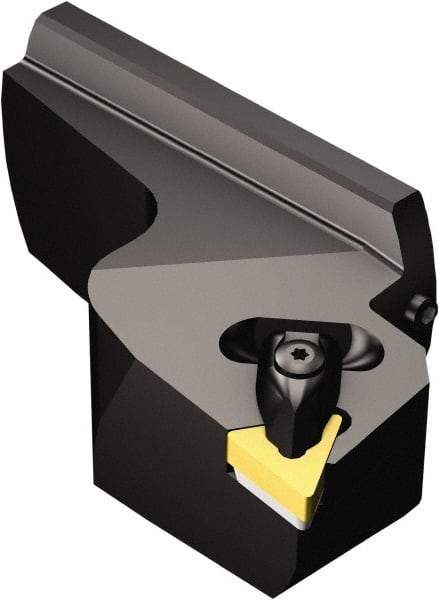

Sandvik Coromant - Right Hand Cut, Size 80, TNMG 16 04 08 & TNMG 332 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 57mm Ctr to Cutting Edge, 45mm Head Length, Series T-Max P
Item #: 49493885
Brand: Sandvik Coromant
Model #: 5764342
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 80 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 45.00 |
| Insert Style | TNMG 16 04 08; TNMG 332 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 57.00 |
| Center to Cutting Edge (Decimal Inch) | 2.2441 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 45.00 |
| Maximum Hole Depth (Decimal Inch) | 1.7716 |
| Minimum Hole Diameter (mm) | 100.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.9370 |
| Neck Diameter (mm) | 80.00 |
| Neck Diameter (Decimal Inch) | 3.14961 |
| Complete Insert Compatibility | TNMG 332; TNMG 16 04 08 |
| Head Connection Size | 80 |
