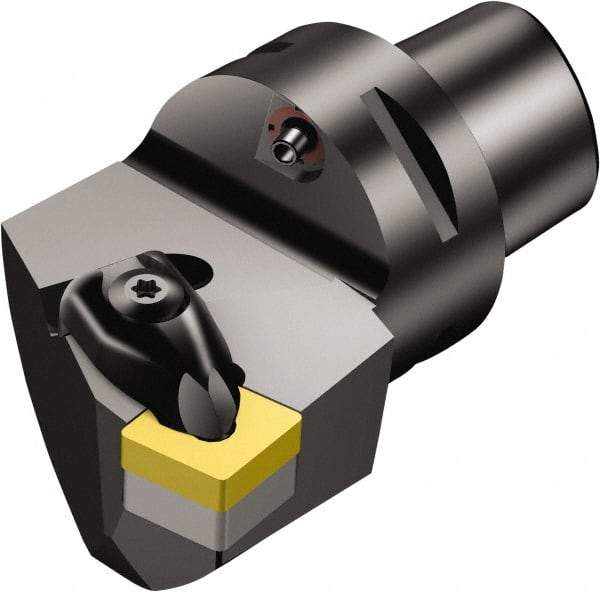

Sandvik Coromant - Left Hand Cut, Size C6, CNMG 12 04 08 & CNMG 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 68.09mm Head Length, Through Coolant, Series T-Max P
Item #: 49493786
Brand: Sandvik Coromant
Model #: 5729609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 68.09 |
| Head Length/Projection (Decimal Inch) | 2.6807 |
| Insert Style | CNMG 12 04 08; CNMG 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7716 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Minimum Hole Diameter (mm) | 110.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.3307 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Complete Insert Compatibility | CNMG 432; CNMG 12 04 08 |
| Head Connection Size | C6 |
