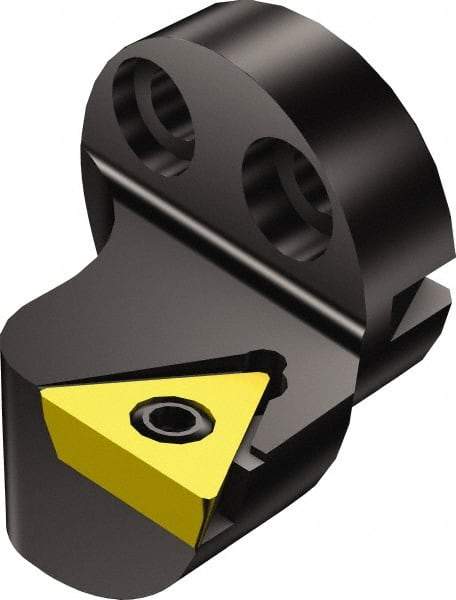

Sandvik Coromant - Left Hand Cut, Size 25, TPMT 11 03 04 & TPMT 221 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 17mm Ctr to Cutting Edge, 20mm Head Length, Through Coolant, Series CoroTurn 111
Item #: 49493588
Brand: Sandvik Coromant
Model #: 5764437
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 25 |
| Series Name | CoroTurn 111 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 20.00 |
| Insert Style | TPMT 11 03 04; TPMT 221 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 20.00 |
| Maximum Hole Depth (Decimal Inch) | 0.7874 |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Neck Diameter (mm) | 25.00 |
| Neck Diameter (Decimal Inch) | 0.984252 |
| Complete Insert Compatibility | TPMT 221; TPMT 11 03 04 |
| Head Connection Size | 25 |
