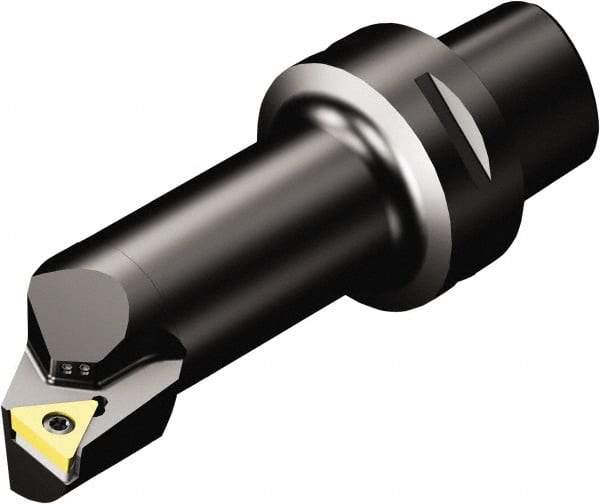

Sandvik Coromant - Right Hand Cut, Size C4, TCMT 11 03 04 & TCMT 221 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 11mm Ctr to Cutting Edge, 70mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49493521
Brand: Sandvik Coromant
Model #: 6476435
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 70.00 |
| Insert Style | TCMT 11 03 04; TCMT 221 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 70.00 |
| Maximum Hole Depth (Decimal Inch) | 2.7559 |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Center to Cutting Height (mm) | 47.00 |
| Center to Cutting Height (Decimal Inch) | 1.8504 |
| Complete Insert Compatibility | TCMT 221; TCMT 11 03 04 |
| Head Connection Size | C4 |
