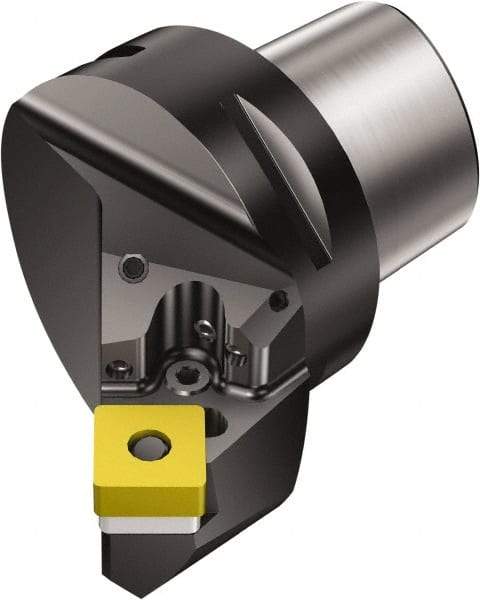

Sandvik Coromant - Right Hand Cut, Size C8, SNMG 19 06 12 & SNMG 643 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 42.52mm Ctr to Cutting Edge, 92.48mm Head Length, Through Coolant, Series T-Max P
Item #: 49493372
Brand: Sandvik Coromant
Model #: 5907968
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 92.48 |
| Head Length/Projection (Decimal Inch) | 3.6409 |
| Insert Style | SNMG 19 06 12; SNMG 643 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 42.52 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 80.00 |
| Maximum Hole Depth (Decimal Inch) | 3.1496 |
| Minimum Hole Diameter (mm) | 200.00 |
| Minimum Hole Diameter (Decimal Inch) | 7.8740 |
| Neck Diameter (mm) | 80.00 |
| Neck Diameter (Decimal Inch) | 3.14961 |
| Complete Insert Compatibility | SNMG 643; SNMG 19 06 12 |
| Head Connection Size | C8 |
