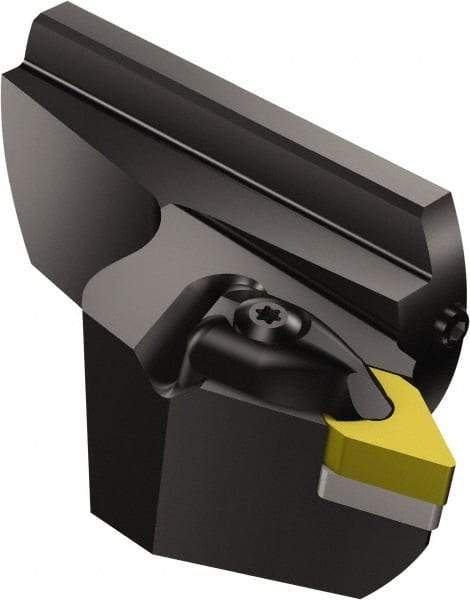

Sandvik Coromant - Left Hand Cut, Size 80, DNMG 15 06 08 & DNMG 442 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 57mm Ctr to Cutting Edge, 40.3mm Head Length, Series T-Max P
Item #: 49493281
Brand: Sandvik Coromant
Model #: 5764389
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 80 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 40.30 |
| Head Length/Projection (Decimal Inch) | 1.5866 |
| Insert Style | DNMG 15 06 08; DNMG 442 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 57.00 |
| Center to Cutting Edge (Decimal Inch) | 2.2441 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 25.00 |
| Maximum Hole Depth (Decimal Inch) | 0.9843 |
| Minimum Hole Diameter (mm) | 100.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.9370 |
| Neck Diameter (mm) | 80.00 |
| Neck Diameter (Decimal Inch) | 3.14961 |
| Complete Insert Compatibility | DNMG 442; DNMG 15 06 08 |
| Head Connection Size | 80 |
