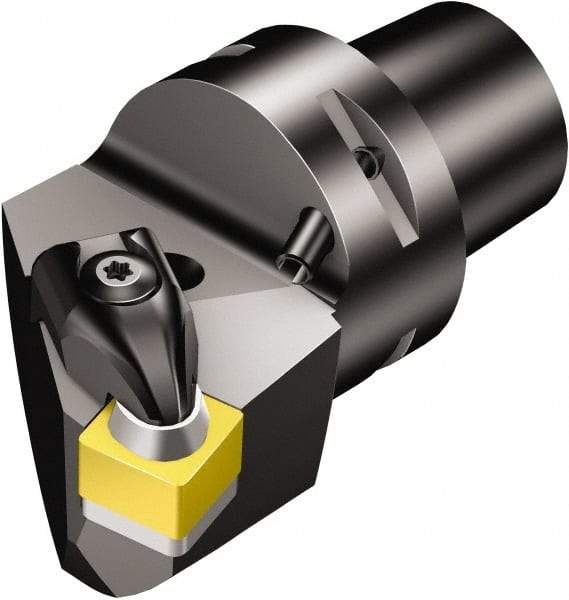

Sandvik Coromant - Right Hand Cut, Size C5, SNG 452 & SNGN 12 07 08 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 26.68mm Ctr to Cutting Edge, 60.32mm Head Length, Through Coolant, Series T-Max
Item #: 49493265
Brand: Sandvik Coromant
Model #: 5728021
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 60.32 |
| Head Length/Projection (Decimal Inch) | 2.3748 |
| Insert Style | SNG 452; SNGN 12 07 08 |
| Center to Cutting Edge (mm) | 26.68 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 52.00 |
| Maximum Hole Depth (Decimal Inch) | 2.0472 |
| Minimum Hole Diameter (mm) | 110.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.3307 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | SNG 452; SNGN 12 07 08 |
| Head Connection Size | C5 |
