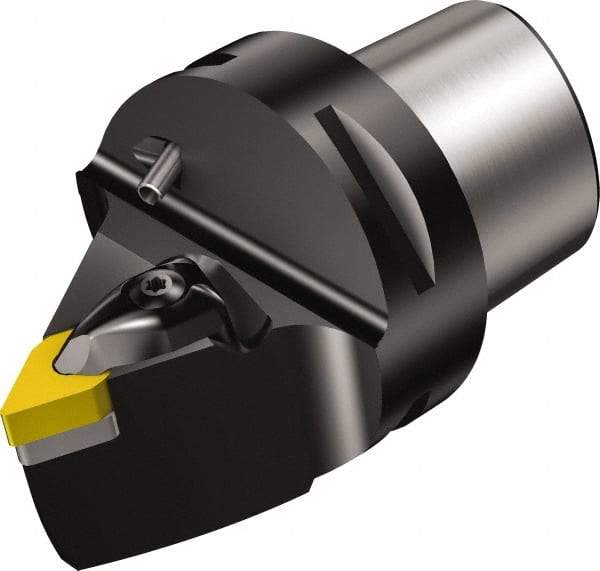

Sandvik Coromant - Neutral Cut, Size C4, DNMG 15 06 08 & DNMG 442 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 0.5mm Ctr to Cutting Edge, 55mm Head Length, Through Coolant, Series T-Max P
Item #: 49493240
Brand: Sandvik Coromant
Model #: 5727521
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max P |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 55.00 |
| Insert Style | DNMG 15 06 08; DNMG 442 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 0.50 |
| Center to Cutting Edge (Decimal Inch) | 0.0197 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 55.00 |
| Maximum Hole Depth (Decimal Inch) | 2.1654 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | DNMG 442; DNMG 15 06 08 |
| Head Connection Size | C4 |
